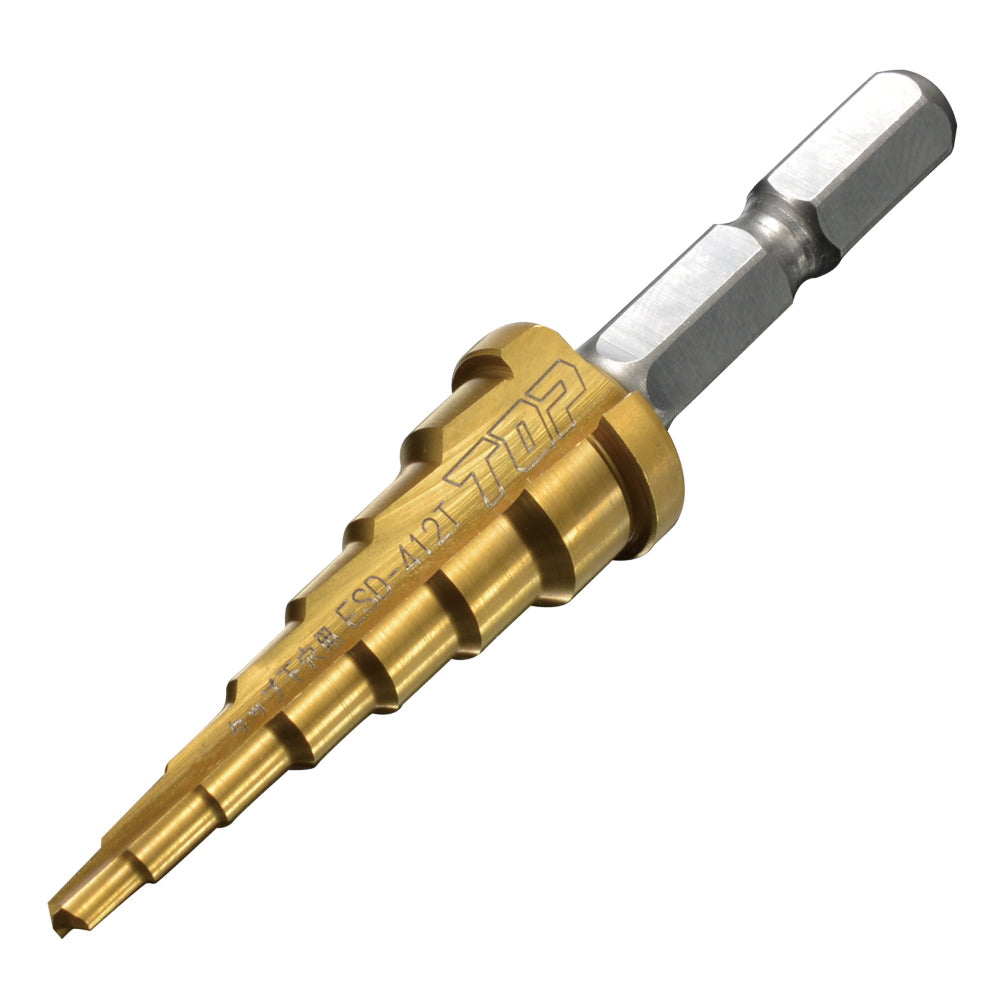

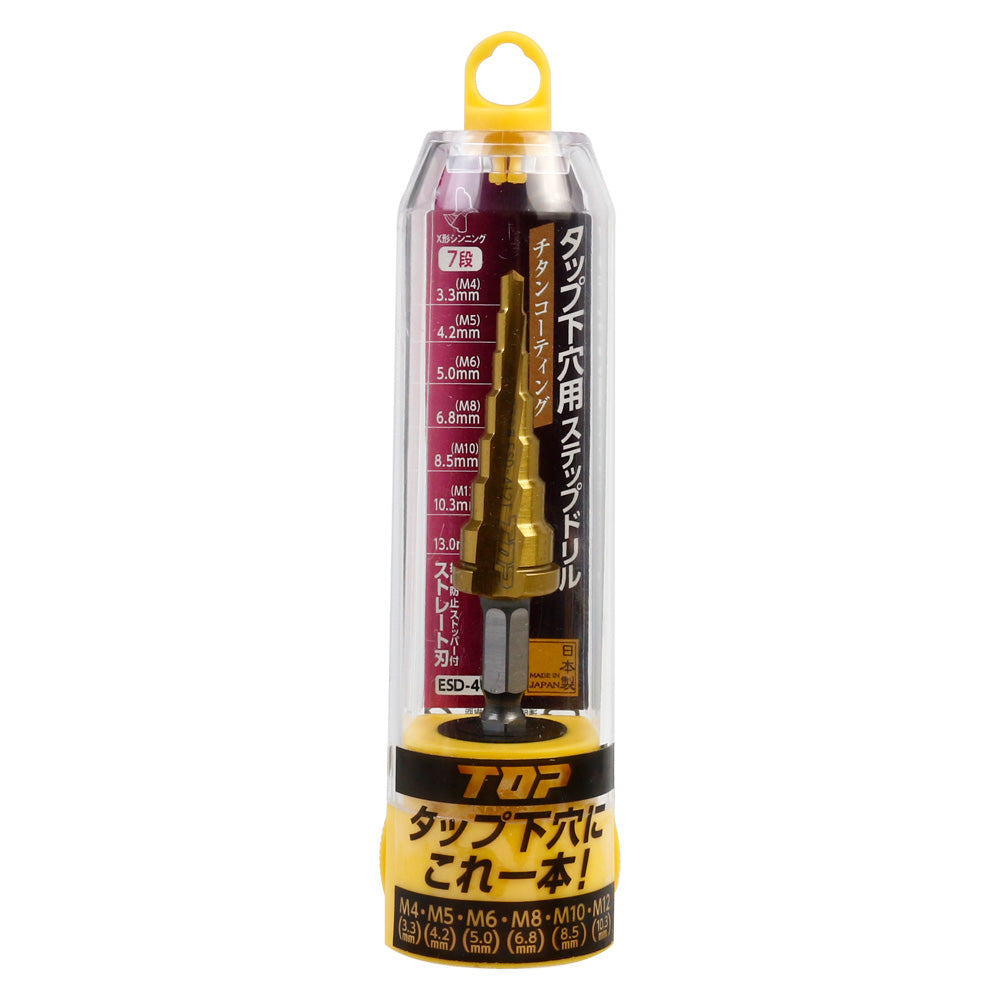

TOP Kogyo Step Drill Bit for Tap Pilot Holes ESD-412T

TOP Kogyo Step Drill Bit for Tap Pilot Holes ESD-412T

Regular price ¥16,090 JPY
Regular price Sale price ¥16,090 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• For drilling pilot holes for taps • For pilot holes for taps for metric coarse thread screws M4, M5, M6, M8, M10 and M12 • Straight flute allows accurate drilling • With anti slip-off stopper • Compatible materials: steel plate (3mm), stainless steel plate (2mm), aluminum plate, plastic, wood, etc. • The cutting edge is thinned, allowing drilling at an accurate position • Compatible with 18V impact drivers [Caution] • For cordless drill drivers, use 12V or higher • The drill generates heat during use, so touching it with bare hands risks burns • Do not use the tool for any purpose other than its intended use • Do not use on heat-treated metal plates • Note: Always use cutting oil on stainless steel plates

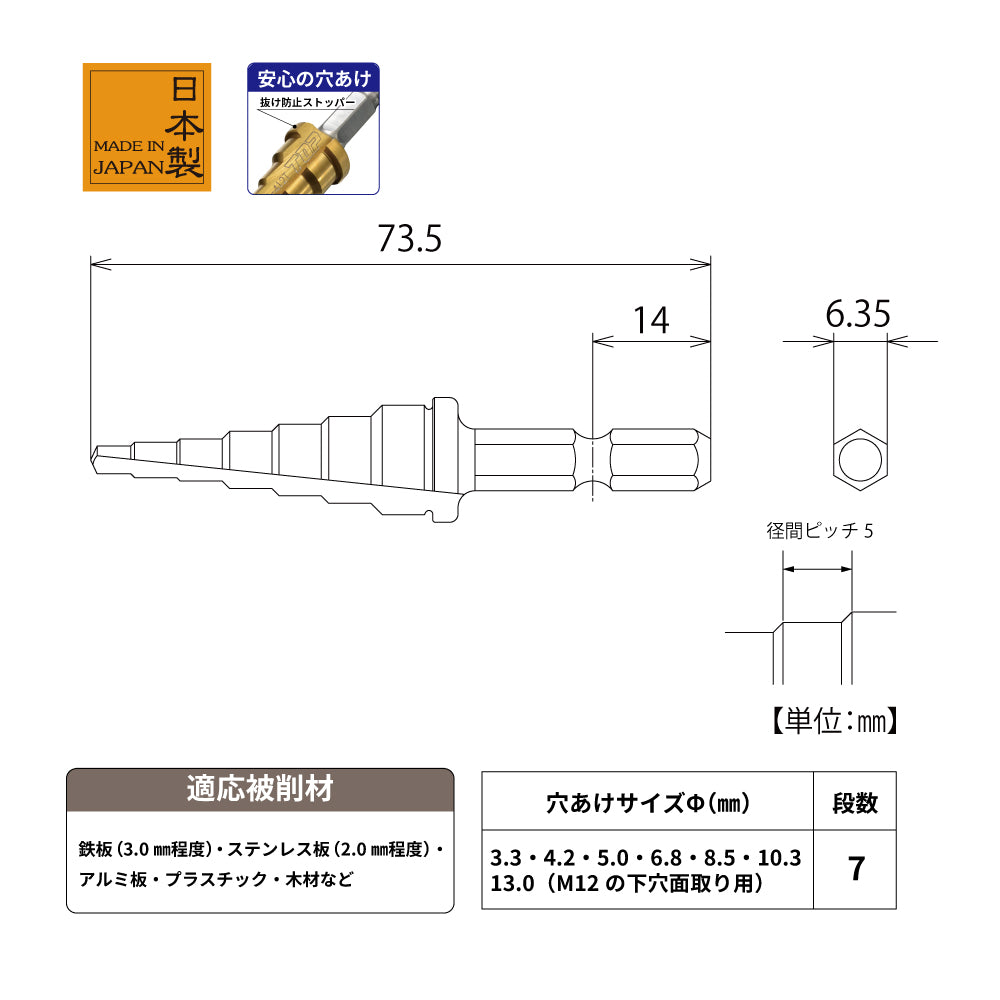

SPECIFICATION

  • Product Number: ESD-412T
  • Overall Length L: 73.5mm (2.9in)
  • Hole Sizes (dia. mm): 3.3, 4.2, 5.0, 6.8, 8.5, 10.3, 13.0 (13.0 is for chamfering the M12 pilot hole)
  • Pitch Between Diameters: 5mm (0.2in)
  • Material: Cobalt high-speed steel / titanium coating (surface treatment)
  • Weight: 25g (0.88oz)
  • Made in Japan
  • JAN Code: 4975180581860
