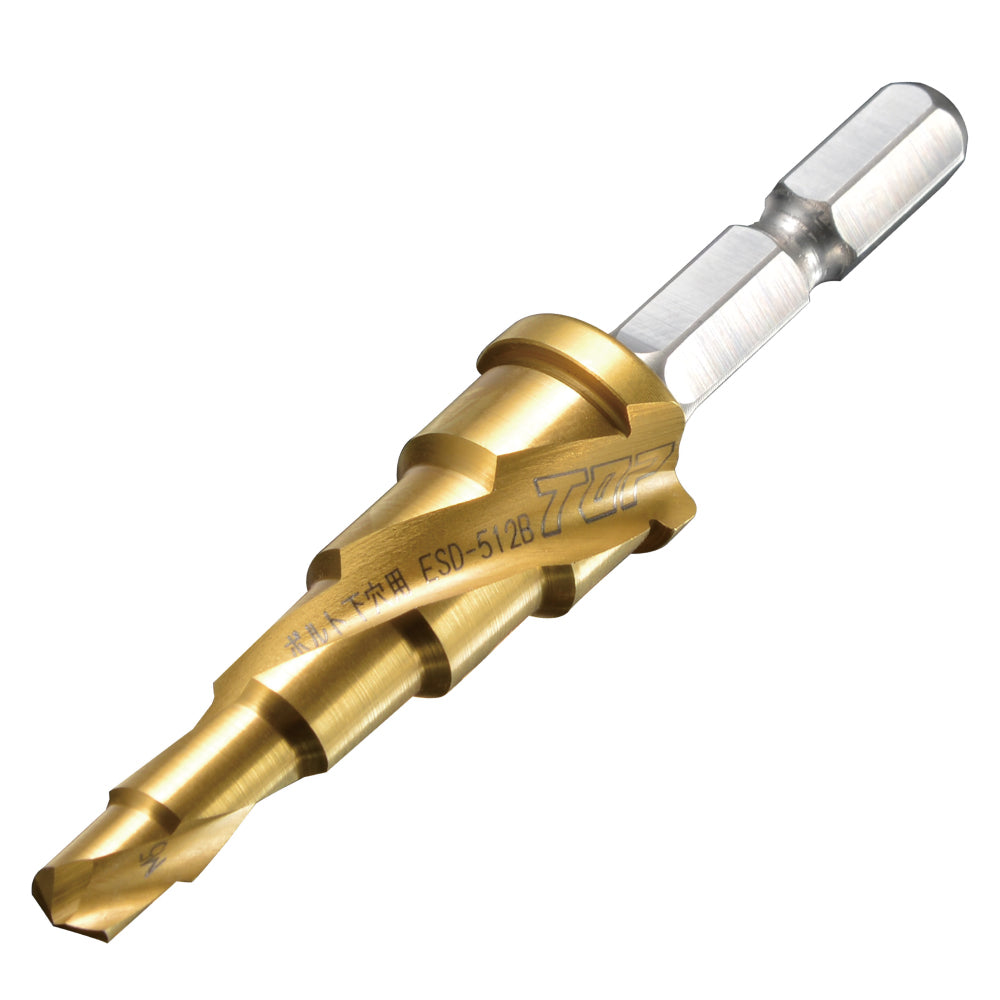

TOP Kogyo Step Drill Bit for Bolt Pilot Holes ESD-512B

TOP Kogyo Step Drill Bit for Bolt Pilot Holes ESD-512B

Regular price ¥16,194 JPY
Regular price Sale price ¥16,194 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• For drilling pilot holes for bolts • For pilot holes for M5, M6, M8, M10 and M12 bolts • Spiral blade with good bite and light cutting action • Compatible materials: steel plate (3mm), stainless steel plate (2mm), aluminum plate, plastic, wood, etc. • The cutting edge is thinned, allowing drilling at an accurate position • Compatible with 18V impact drivers [Caution] • For cordless drill drivers, use 12V or higher • The drill generates heat during use, so touching it with bare hands risks burns • Do not use the tool for any purpose other than its intended use • Do not use on heat-treated metal plates • Note: Always use cutting oil on stainless steel plates

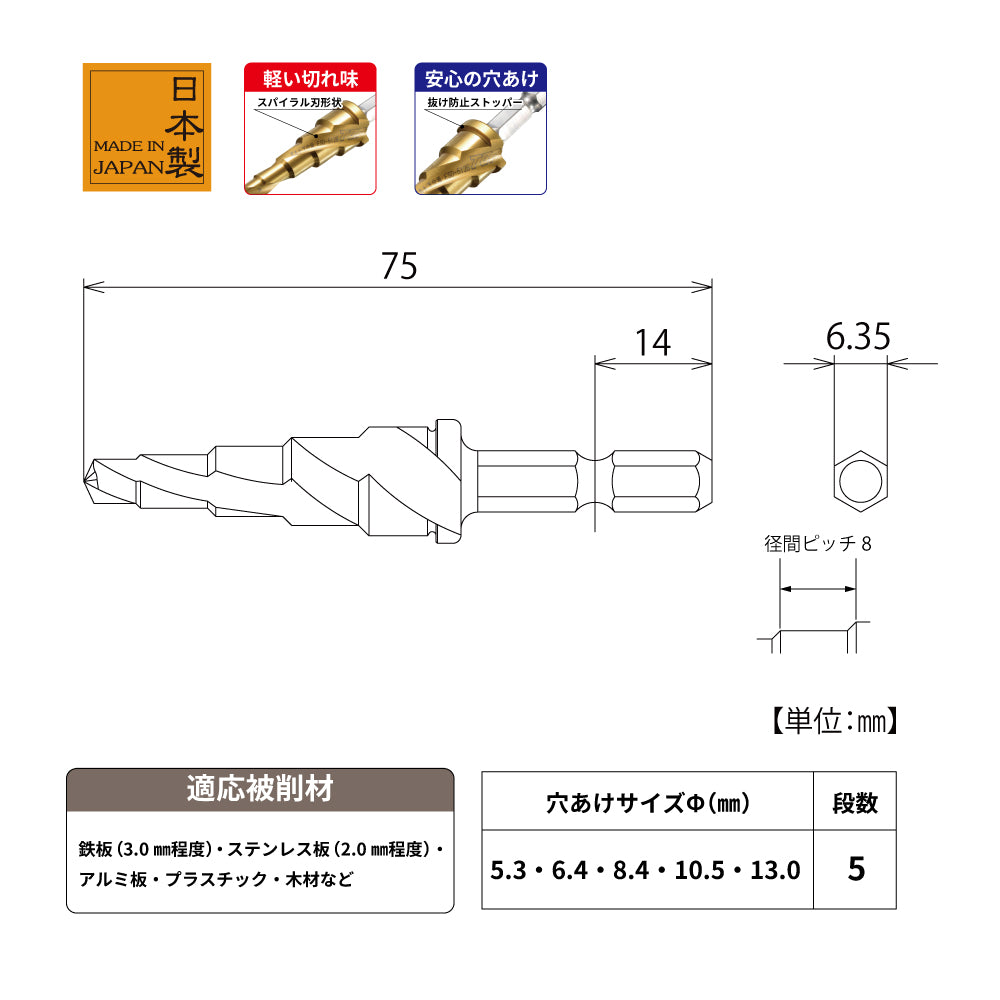

SPECIFICATION

  • Product Number: ESD-512B
  • Overall Length L: 75mm (3.0in)
  • Hole Sizes (dia. mm): 5.3, 6.4, 8.4, 10.5, 13.0
  • Pitch Between Diameters: 8mm (0.3in)
  • Material: Cobalt high-speed steel / titanium coating (surface treatment)
  • Weight: 30g (1.1oz)
  • Made in Japan
  • JAN Code: 4975180581914
