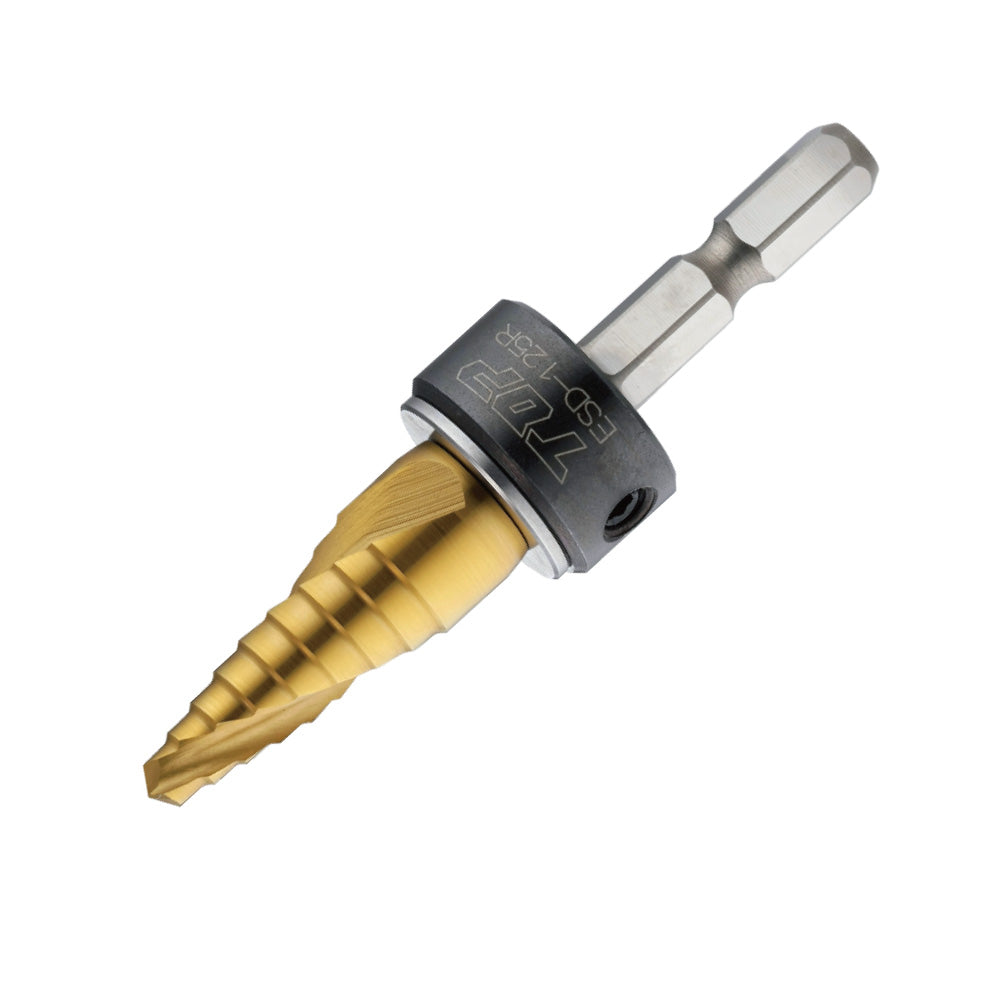

TOP Kogyo Roof Drill Bit for Folded Plate Roofs ESD-125R

TOP Kogyo Roof Drill Bit for Folded Plate Roofs ESD-125R

Regular price ¥13,497 JPY
Regular price Sale price ¥13,497 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• Dedicated to pilot holes for roof bolts on folded plate roofs (roof decks) • An anti slip-off stopper and a rotating ring reduce scratches on the roof surface • Spiral blade shape allows drilling with light cutting action • The cutting edge is thinned, allowing drilling at an accurate position • Compatible with 18V impact drivers [Caution] • Limited to plate thickness of 2mm or less (up to two stacked 0.8mm sheets), so do not use on thick steel plates • Use a cordless drill of 12V or higher • Always wear protective glasses while working • Do not use on heat-treated metal plates • Apply cutting oil to stainless steel plates and work at 1/2 the rotation speed used for steel • The drill gets hot during use, so do not touch it with bare hands

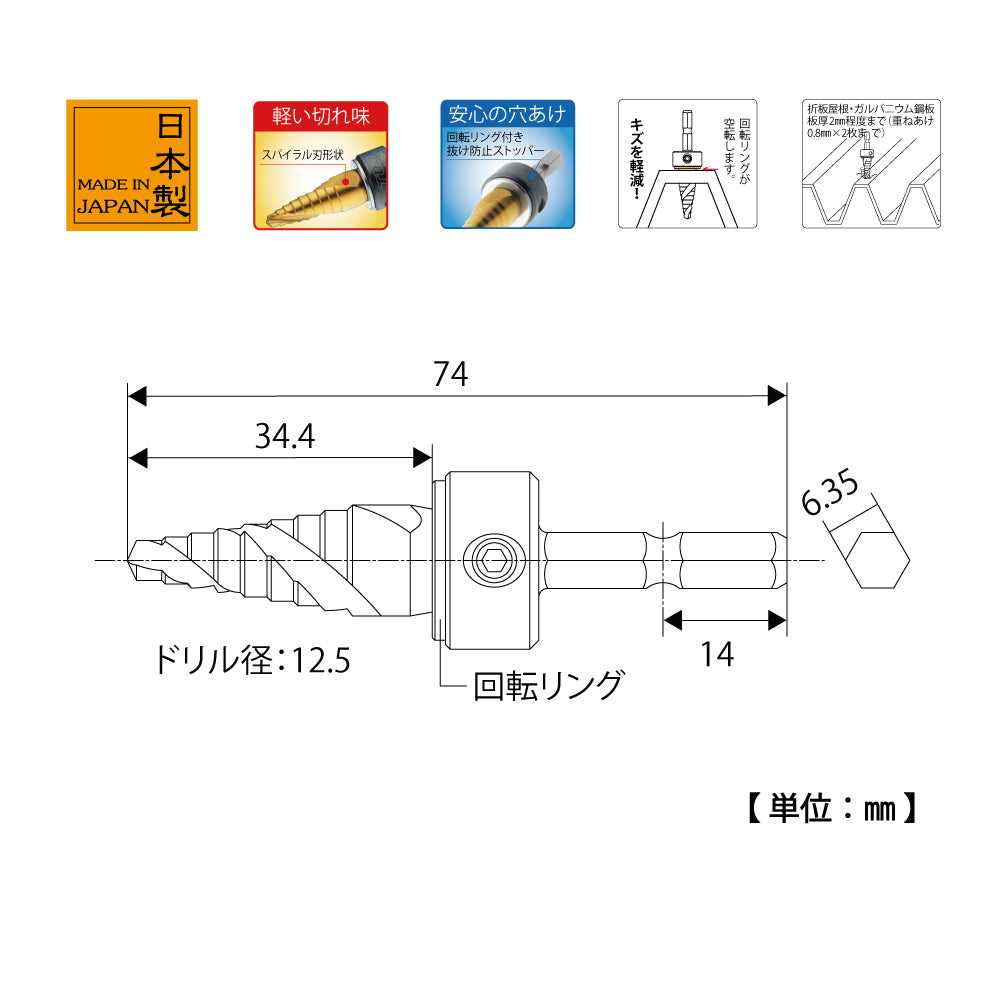

SPECIFICATION

  • Product Number: ESD-125R
  • Overall Length L: 74mm (2.9in)
  • Hole Size: 12.5mm (0.5in) only
  • Folded plate roofing and galvalume steel sheet up to 2mm (0.08in) (up to two stacked 0.8mm (0.03in) sheets)
  • Material: High-speed steel
  • Weight: 62g (2.2oz)
  • Made in Japan
  • JAN Code: 4975180581815
