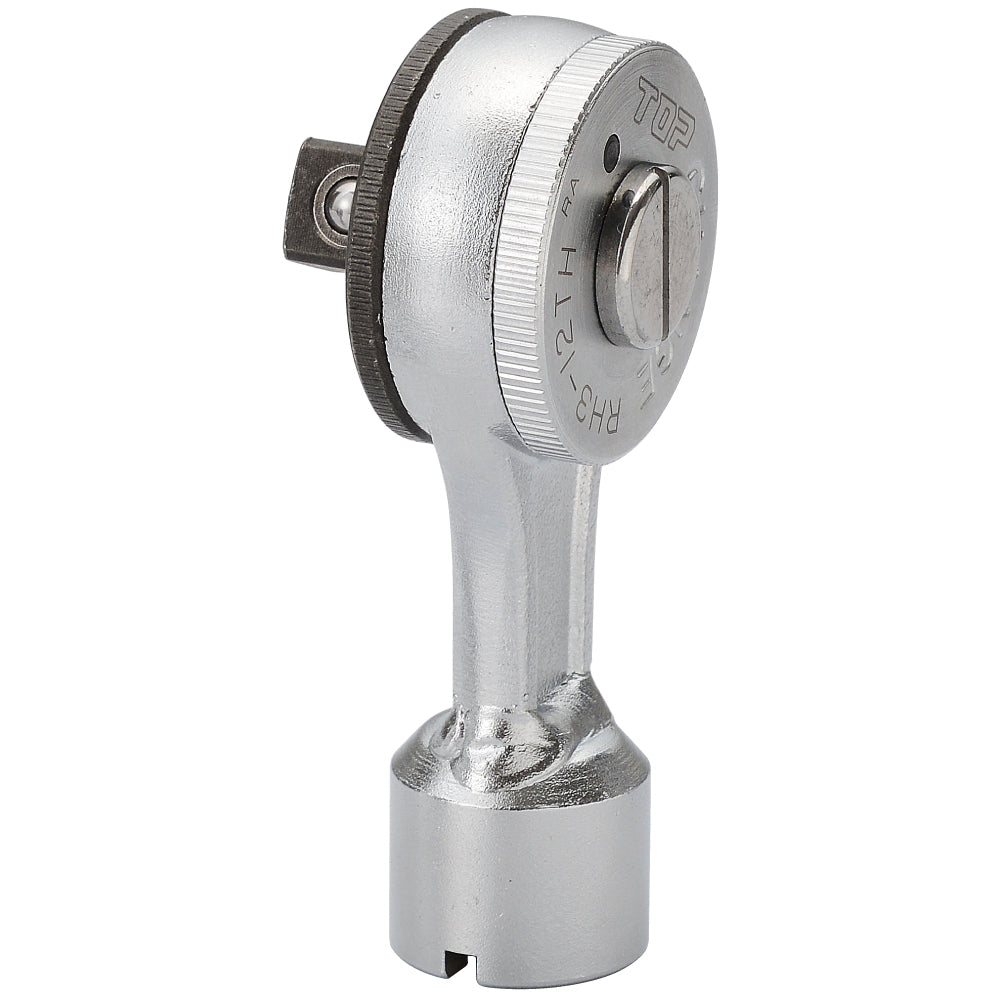

TOP Kogyo Ratchet Torque Head 9.5mm Drive 12mm Dia. RH3-12TH

TOP Kogyo Ratchet Torque Head 9.5mm Drive 12mm Dia. RH3-12TH

Regular price ¥10,935 JPY
Regular price Sale price ¥10,935 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• Can be attached to a compatible torque handle for use. • Round, compact head with a small swing angle, ideal for work in tight spaces. • Drive direction can be switched. • By changing the insertion direction into the preset torque handle, it can also be used to tighten left-hand threads. • Number of gear teeth: 72 (5° feed) [Caution] • Before applying load, confirm that the tightening direction of the head matches the arrow direction on the body. • This torque head is exclusively for our preset torque handles and interchangeable-head torque handles. Do not insert it into products of other manufacturers. • In particular, if the ratchet head is used in muddy water and mud adheres to it, rinse it off with tap water, let it dry, and apply oil to prevent rust. • Read the instruction manual provided and use the product correctly.

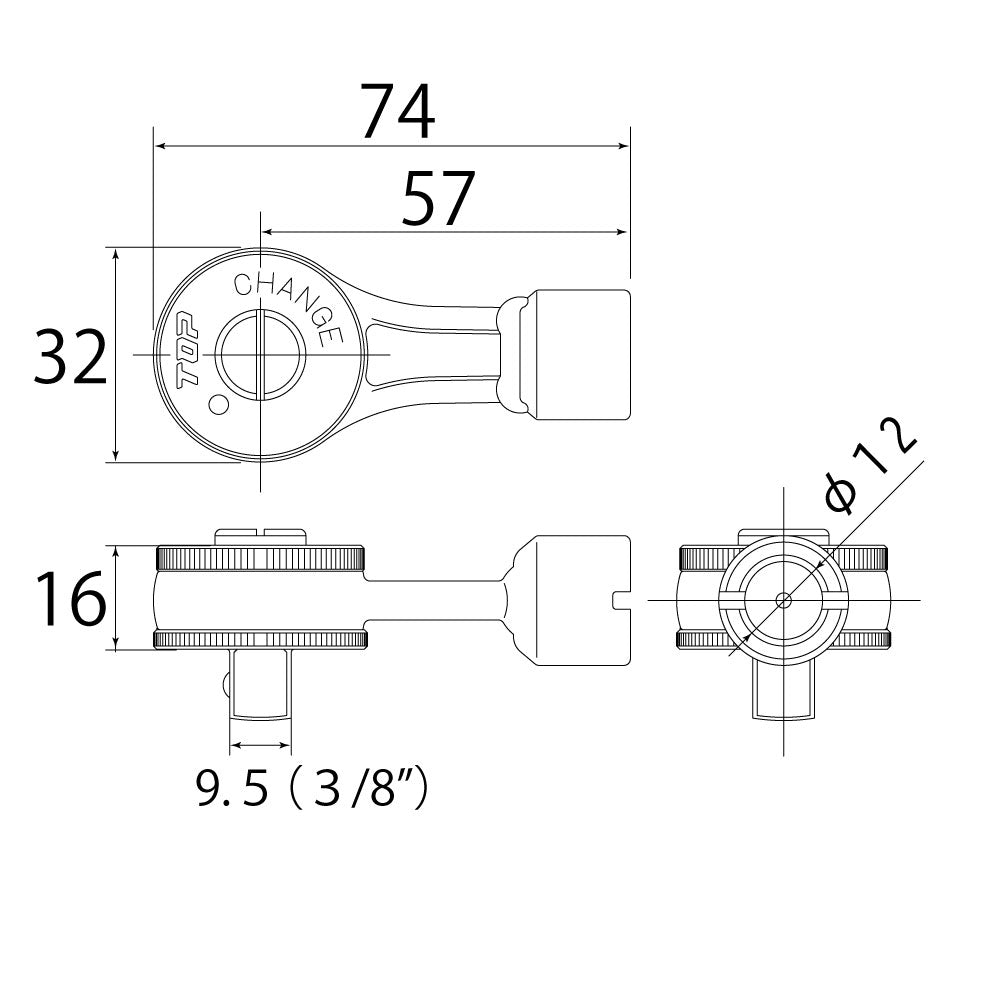

SPECIFICATION

  • Product Number: RH3-12TH
  • Applicable Torque Handles: T-50NTG, DT060-12BN
  • Drive Size: 9.5mm (3/8")
  • Φd: 12mm (0.5in)
  • Weight: 145g (5.1oz)
  • Made in Japan
  • JAN Code: 4975180372147
