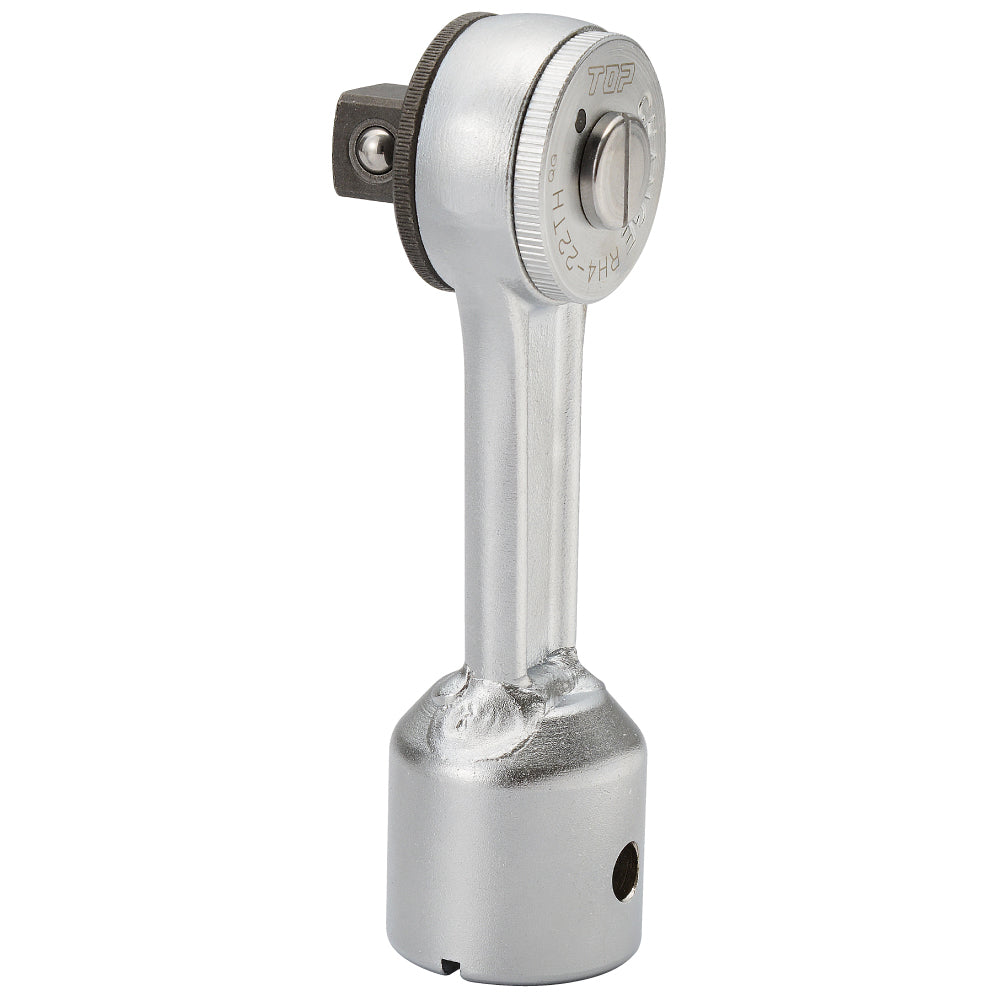

TOP Kogyo Ratchet Torque Head 12.7mm Drive 22mm Dia. RH4-22TH

TOP Kogyo Ratchet Torque Head 12.7mm Drive 22mm Dia. RH4-22TH

Regular price ¥14,397 JPY
Regular price Sale price ¥14,397 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• Can be attached to a compatible torque handle for use. • Round, compact head with a small swing angle, ideal for work in tight spaces. • Drive direction can be switched. • By changing the insertion direction into the preset torque handle, it can also be used to tighten left-hand threads. • Number of gear teeth: 72 (5° feed) [Caution] • Before applying load, confirm that the tightening direction of the head matches the arrow direction on the body. • This torque head is exclusively for our preset torque handles and interchangeable-head torque handles. Do not insert it into products of other manufacturers. • In particular, if the ratchet head is used in muddy water and mud adheres to it, rinse it off with tap water, let it dry, and apply oil to prevent rust. • Read the instruction manual provided and use the product correctly.

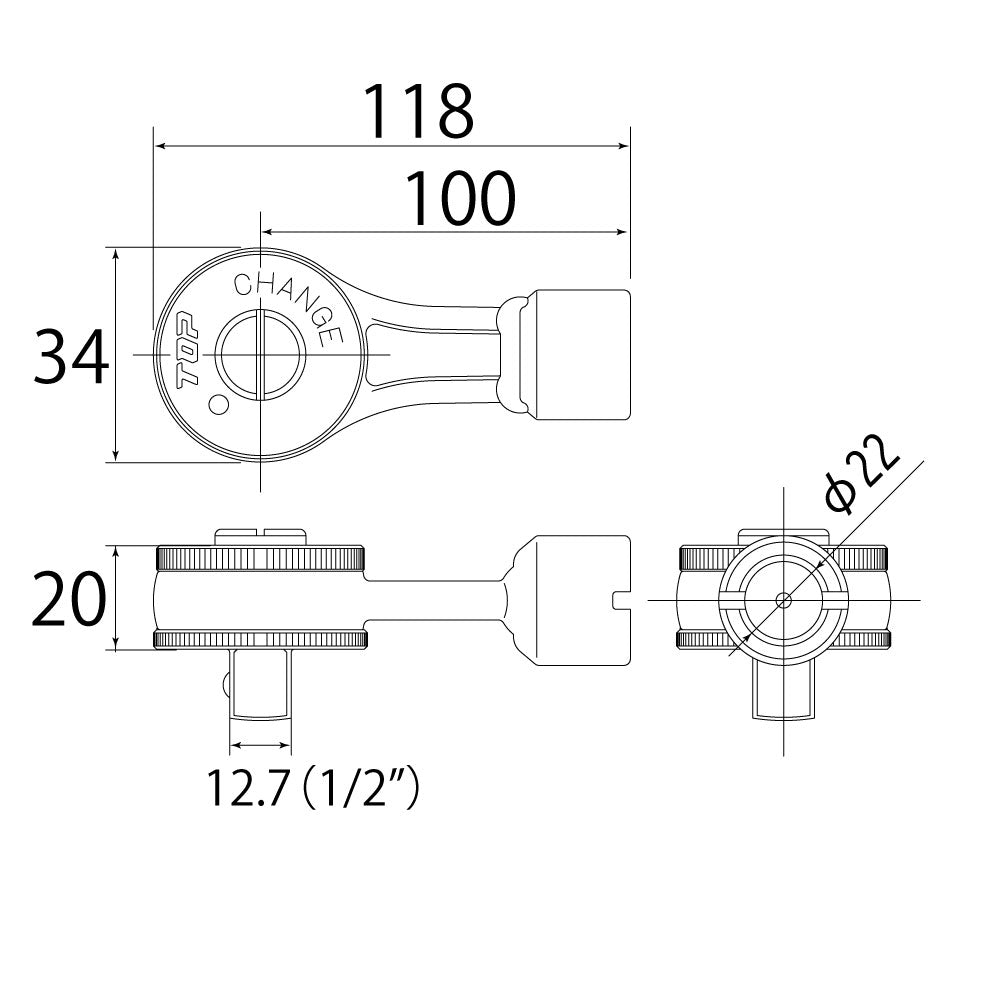

SPECIFICATION

  • Product Number: RH4-22TH
  • Applicable Torque Handles: DT340-22BN
  • Drive Size: 12.7mm (1/2")
  • Φd: 22mm (0.9in)
  • Weight: 300g (10.6oz)
  • Made in Japan
  • JAN Code: 4975180372208
