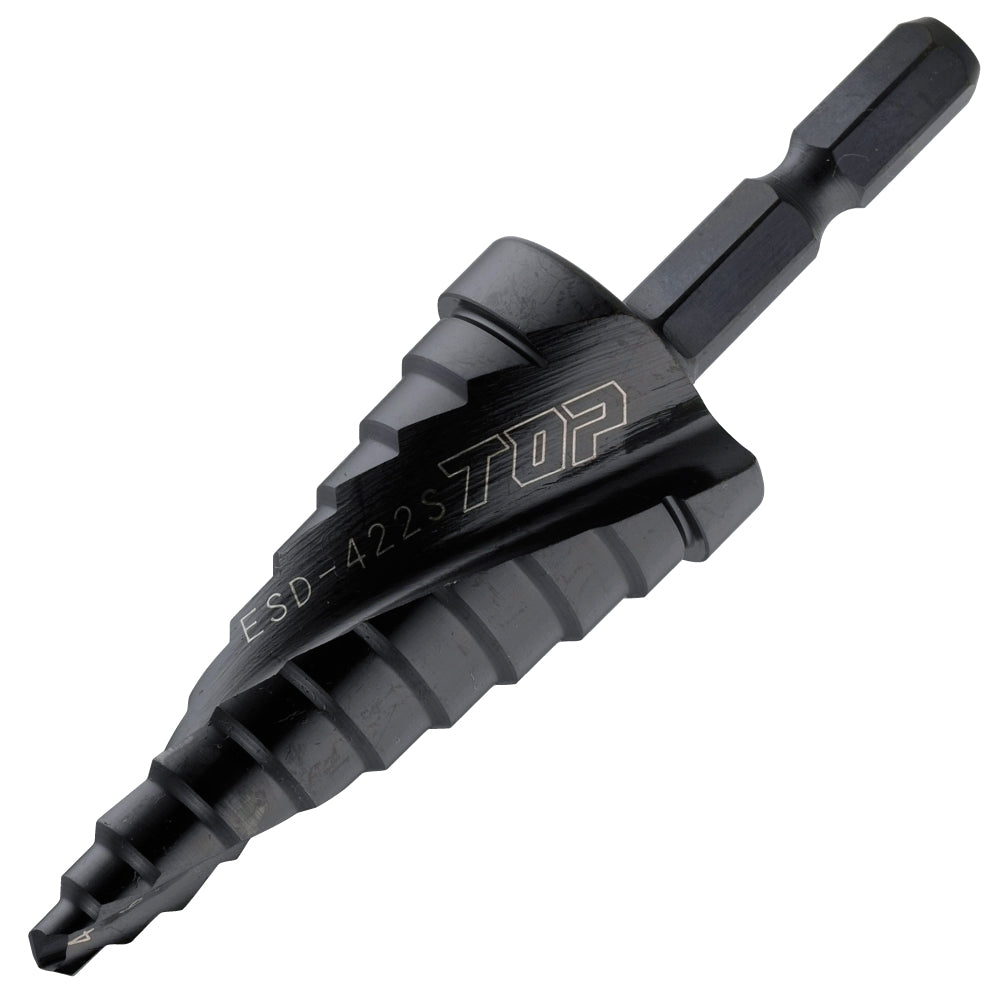

TOP Kogyo Hex Shank Spiral Step Drill Bit 4 to 22mm ESD-422S

TOP Kogyo Hex Shank Spiral Step Drill Bit 4 to 22mm ESD-422S

Regular price ¥20,550 JPY
Regular price Sale price ¥20,550 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity
• Spiral blade shape provides light cutting action and improved durability • Compatible materials: steel plate (2mm), stainless steel plate (1mm), plastic, wood, etc. • The cutting edge is thinned, allowing drilling at an accurate position • Compatible with 18V impact drivers [Caution] • Use a cordless drill of 12V or higher • Always wear protective glasses while working • Do not use on heat-treated metal plates • Apply cutting oil to stainless steel plates and work at 1/2 the rotation speed used for steel • The drill gets hot during use, so do not touch it with bare hands

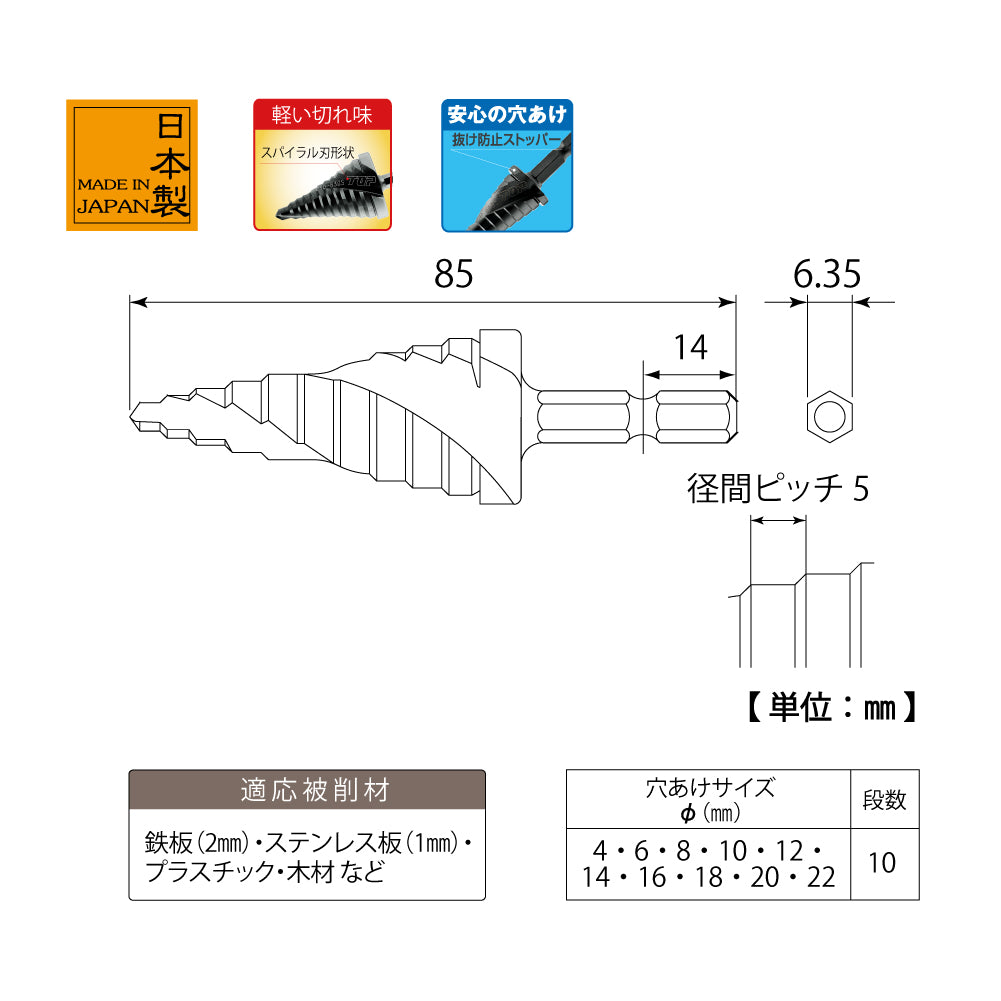

SPECIFICATION

  • Product Number: ESD-422S
  • Overall Length L: 85mm (3.3in)
  • Hole Sizes (dia. mm): 4, 6, 8, 10, 12, 14, 16, 18, 20, 22
  • Pitch Between Diameters: 5mm (0.2in)
  • Material: Cobalt high-speed steel
  • Weight: 75g (2.6oz)
  • Made in Japan
  • JAN Code: 4975180580771
