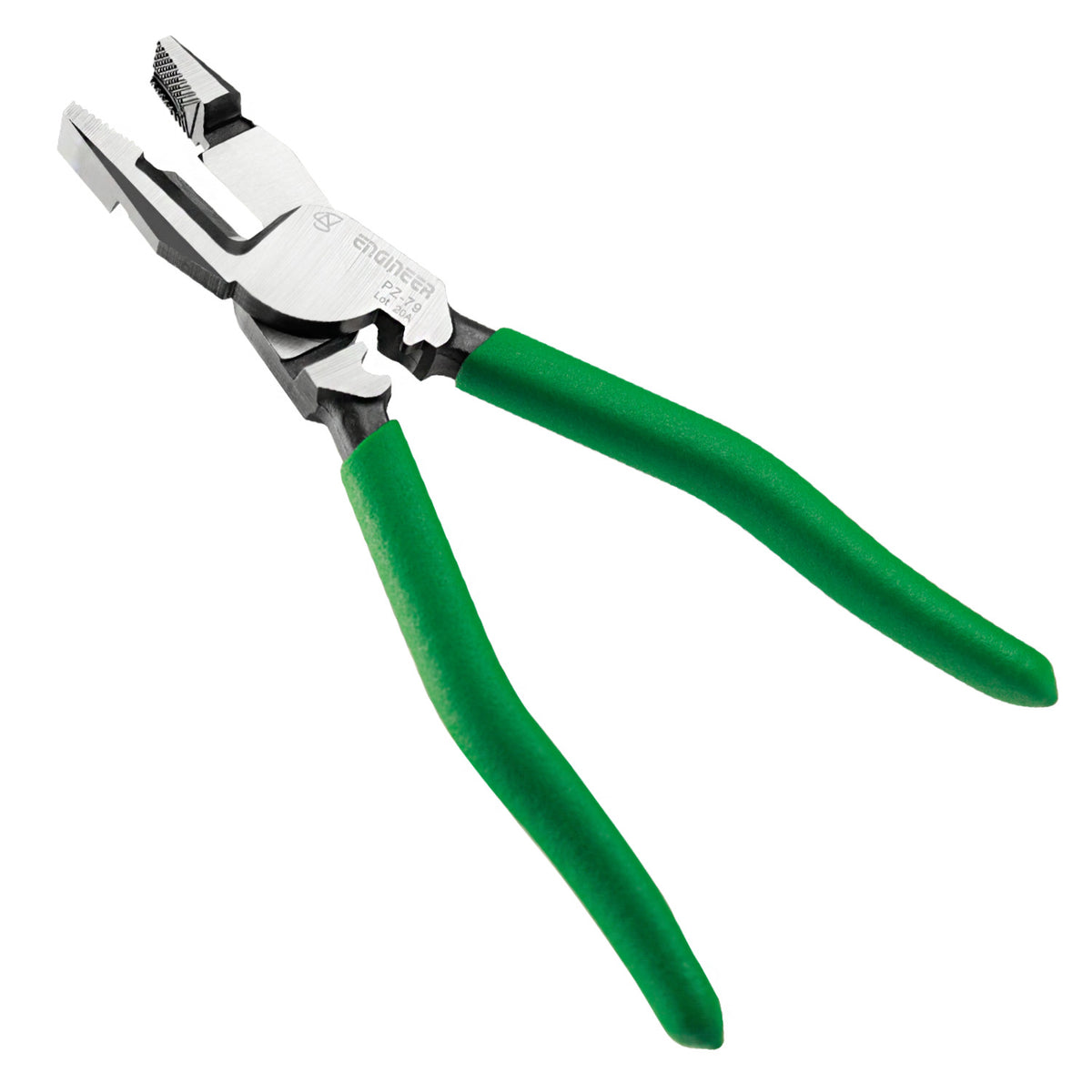

Engineer Nejisaurus VA Electrician's Screw Removal Pliers 215 mm PZ-79

Engineer Nejisaurus VA Electrician's Screw Removal Pliers 215 mm PZ-79

Regular price ¥4,822 JPY
Regular price Sale price ¥4,822 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity

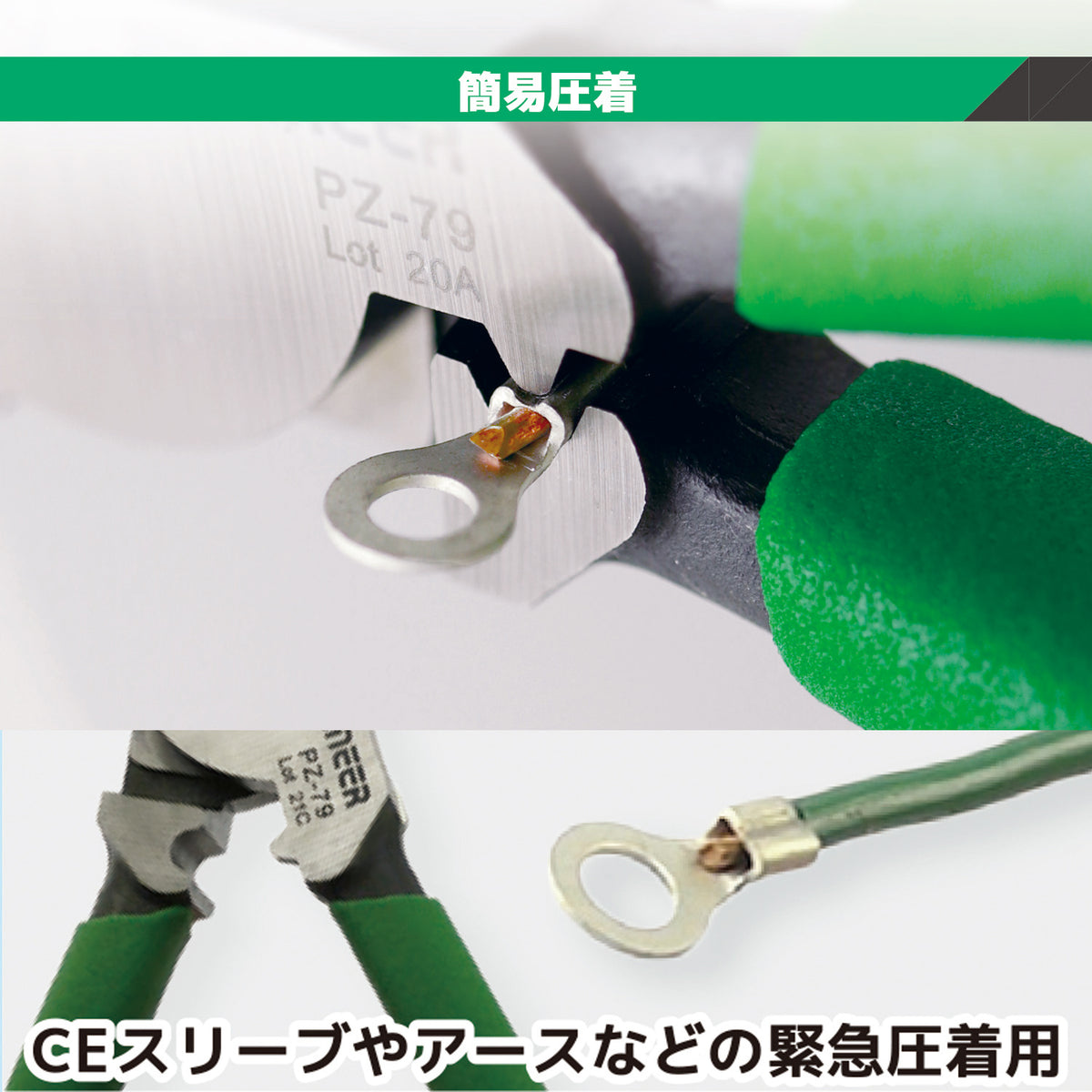

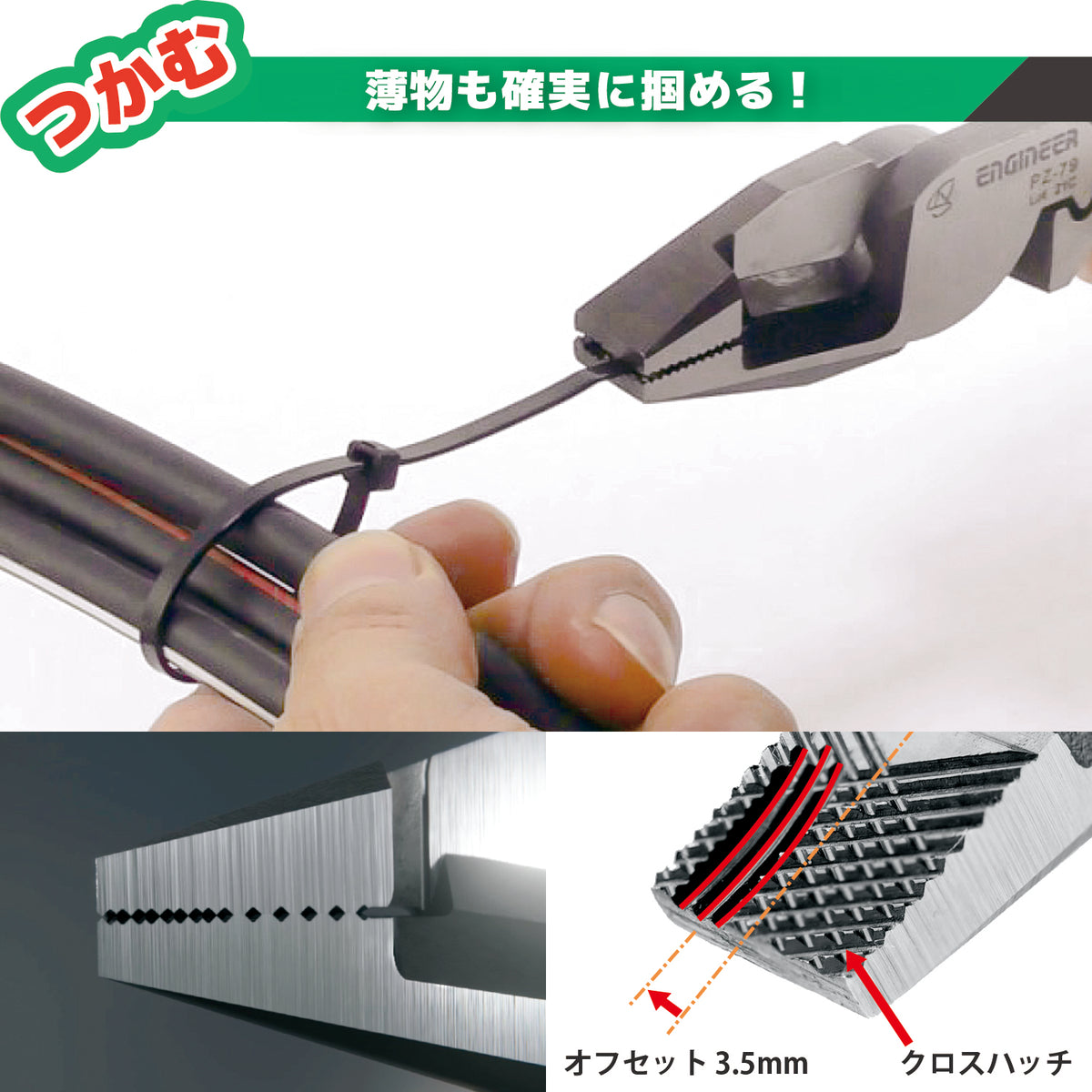

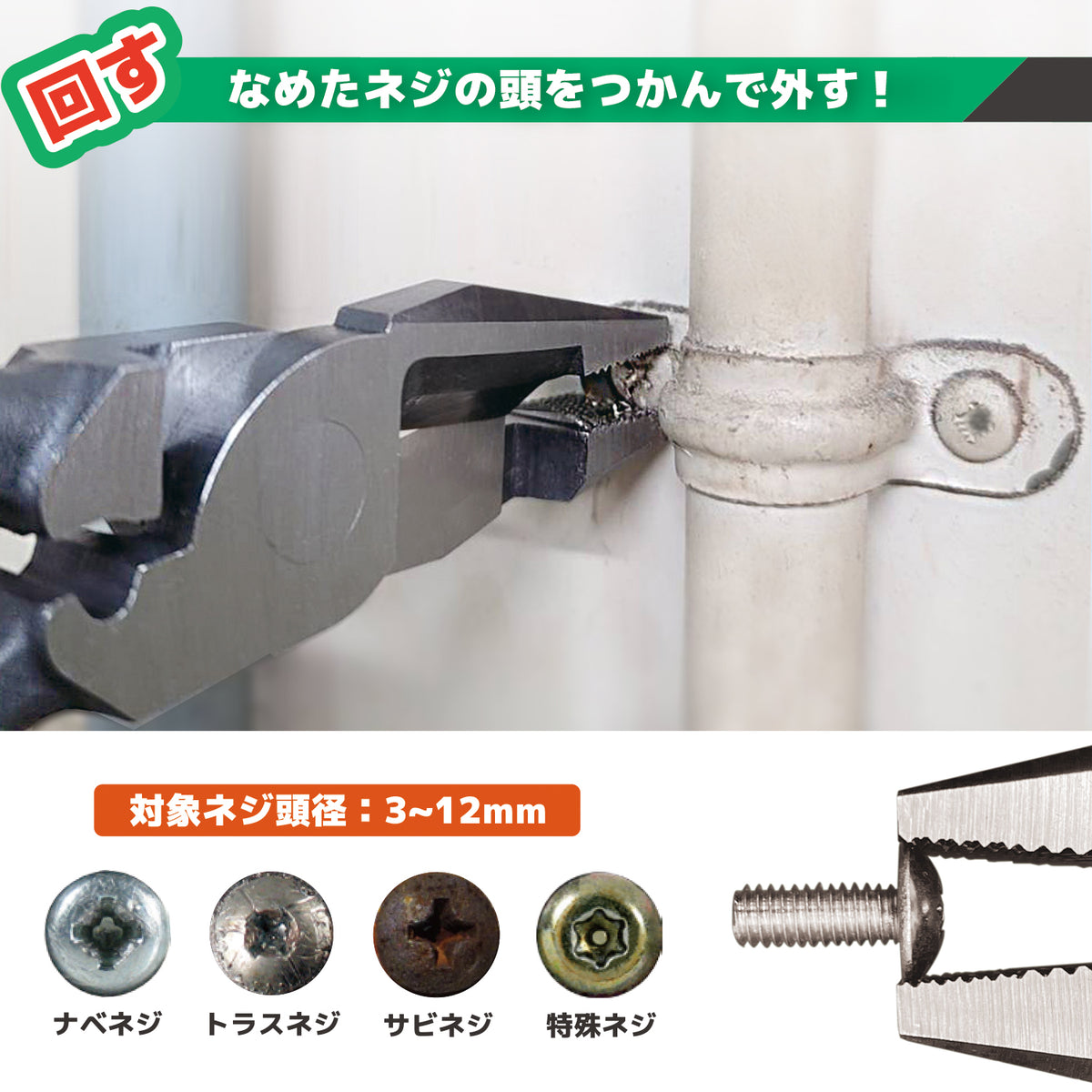

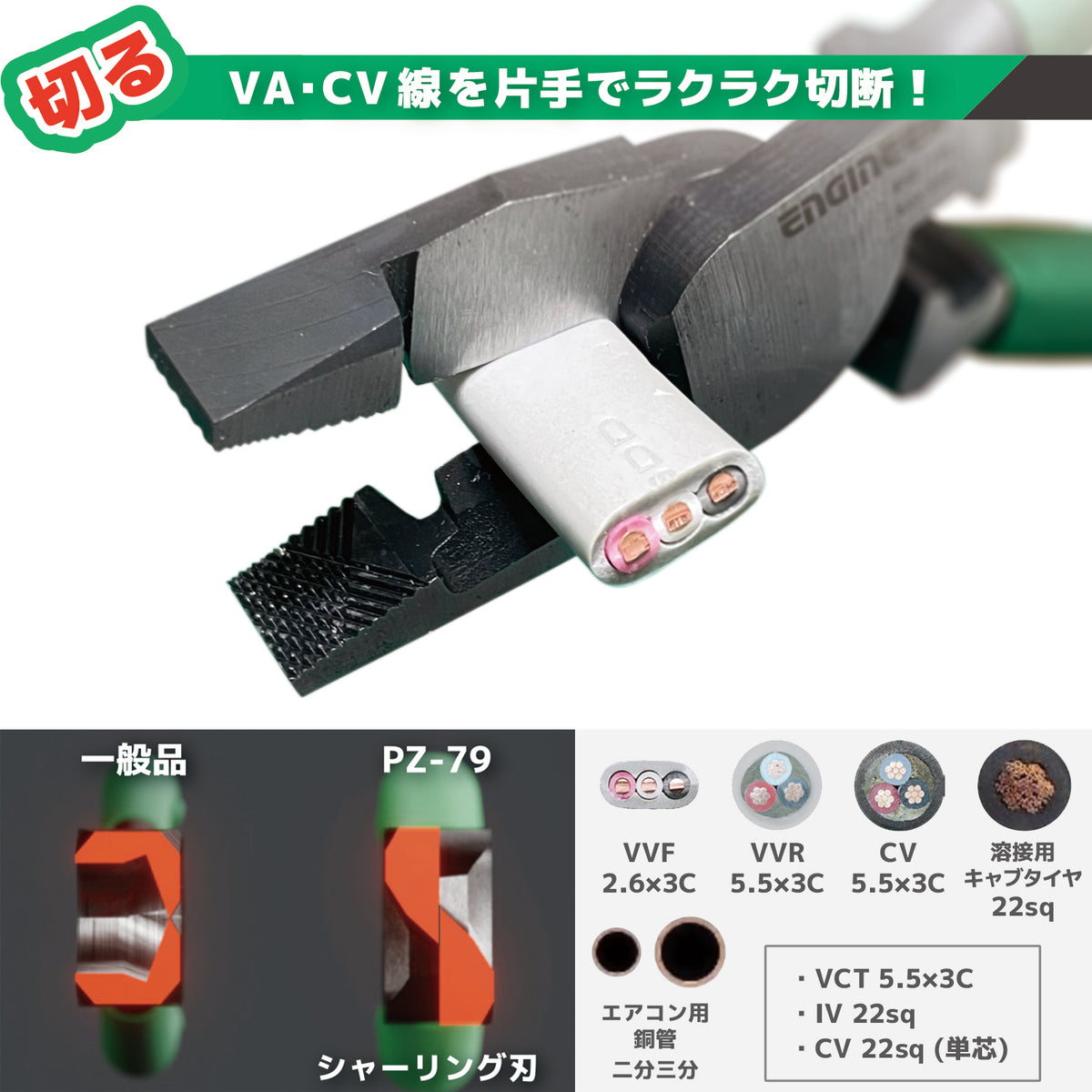

[Features] • Multi-function pliers for electrical work with a built-in screw removal feature. • Outstanding sharpness. The sharp shearing blades cut VVF φ2.6 x 3-core cable with ease. • The vertical grooves on the tip grip and turn stripped screws and rusted screws. • The unique tip shape also handles low-head screws (truss head screws). • The tip can grip vertically, allowing work even in tight spaces. • The mesh cross-hatch pattern improves gripping power compared with ordinary pliers. • There is no gap at the tip, so even ultra-thin sheets can be gripped securely. • Offsetting the vertical grooves to one side of the tip allows thin cable ties to be gripped securely. • Includes a simple crimping function for CE sleeves and ground terminals (applicable range: 1.25 to 3.5 mm²). • The grip is made of oil-resistant, eco-friendly elastomer. Designed grip that fits comfortably in the hand. • Note: This tool is not insulated. Never use it to cut live wires or on powered equipment. • Note: Do not use on high-hardness screws such as tapping screws, drilling screws, and coarse thread screws. • Note: May not work on screws completely seized by rust or adhesive. • Note: Do not use for cutting steel wire or similar. [Applications] • For work in electrical construction, electrical materials, civil engineering, building construction, and related fields. • For removing stripped screws and rusted screws.

SPECIFICATION

  • Product Number: PZ-79
  • Compatible Screw Head Diameter: φ3 to 12 mm (0.12 to 0.47 in)
  • Vertical Groove Hardness: HRC60±2
  • Cutting Capacity: VVF: 2.6 mm (0.1 in) x 3 cores, VVR: 5.5 mm (0.22 in) x 3 cores, CV: 5.5 mm (0.22 in) x 3 cores, VCT: 5.5 mm (0.22 in) x 3 cores, IV: 22 SQ, CV: 22 SQ (single core)
  • Crimping Range: 1.25 to 3.5mm2
  • Overall Length: 215 mm (8.46 in)
  • Tip Width: 26.5 mm (1.04 in)
  • Tip Length: 42 mm (1.65 in)
  • Blade Length: 20 mm (0.79 in)
  • Grip Width: 52 mm (2.05 in)
  • Weight: 340 g (12 oz)
  • Material: Body: carbon steel
  • Made in Taiwan
  • JAN Code: 4989833039790
