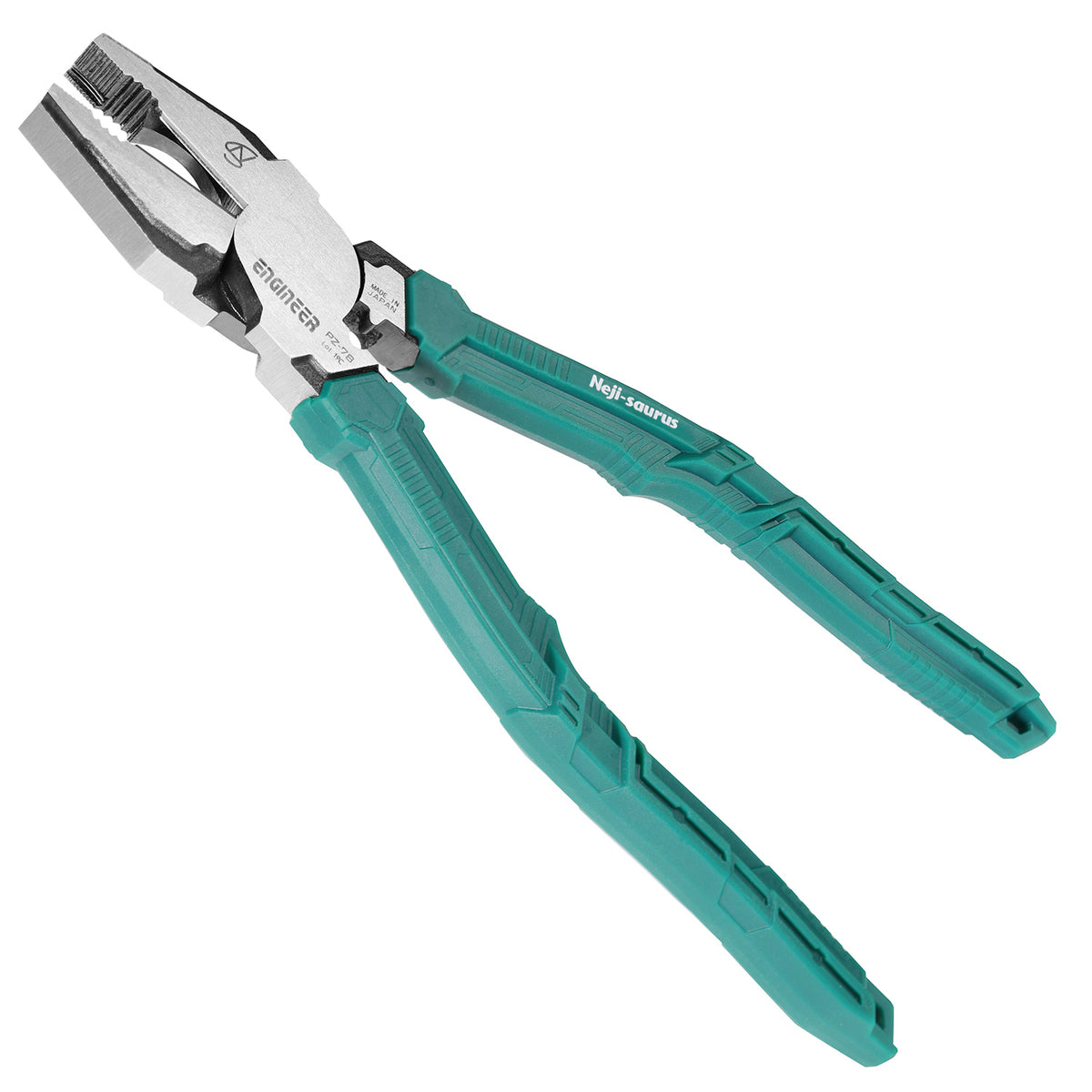

Engineer Nejisaurus EL Electrician's Screw Removal Pliers 225 mm PZ-78

Engineer Nejisaurus EL Electrician's Screw Removal Pliers 225 mm PZ-78

Regular price ¥4,900 JPY
Regular price Sale price ¥4,900 JPY
Sale Sold out
Shipping calculated at checkout.
Quantity

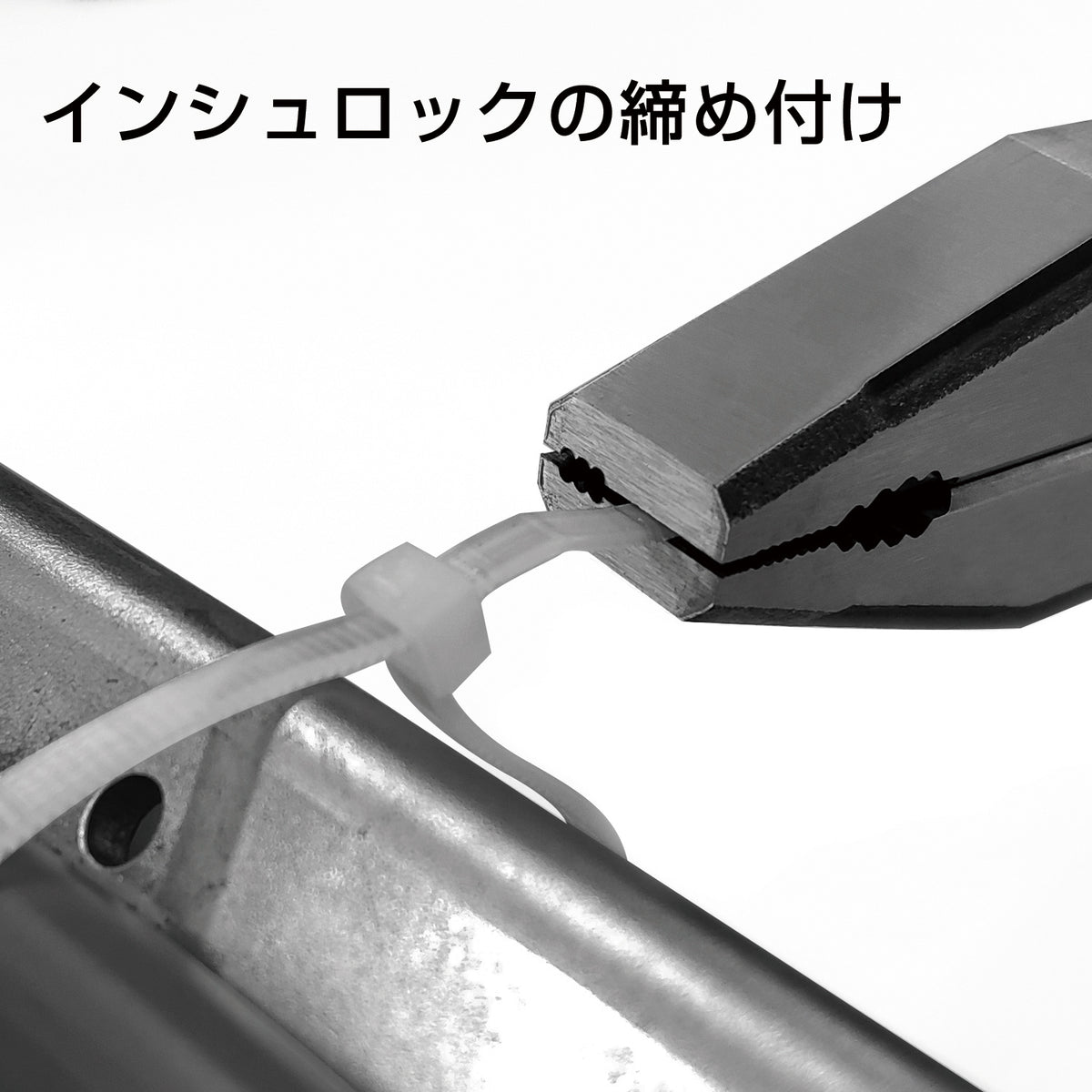

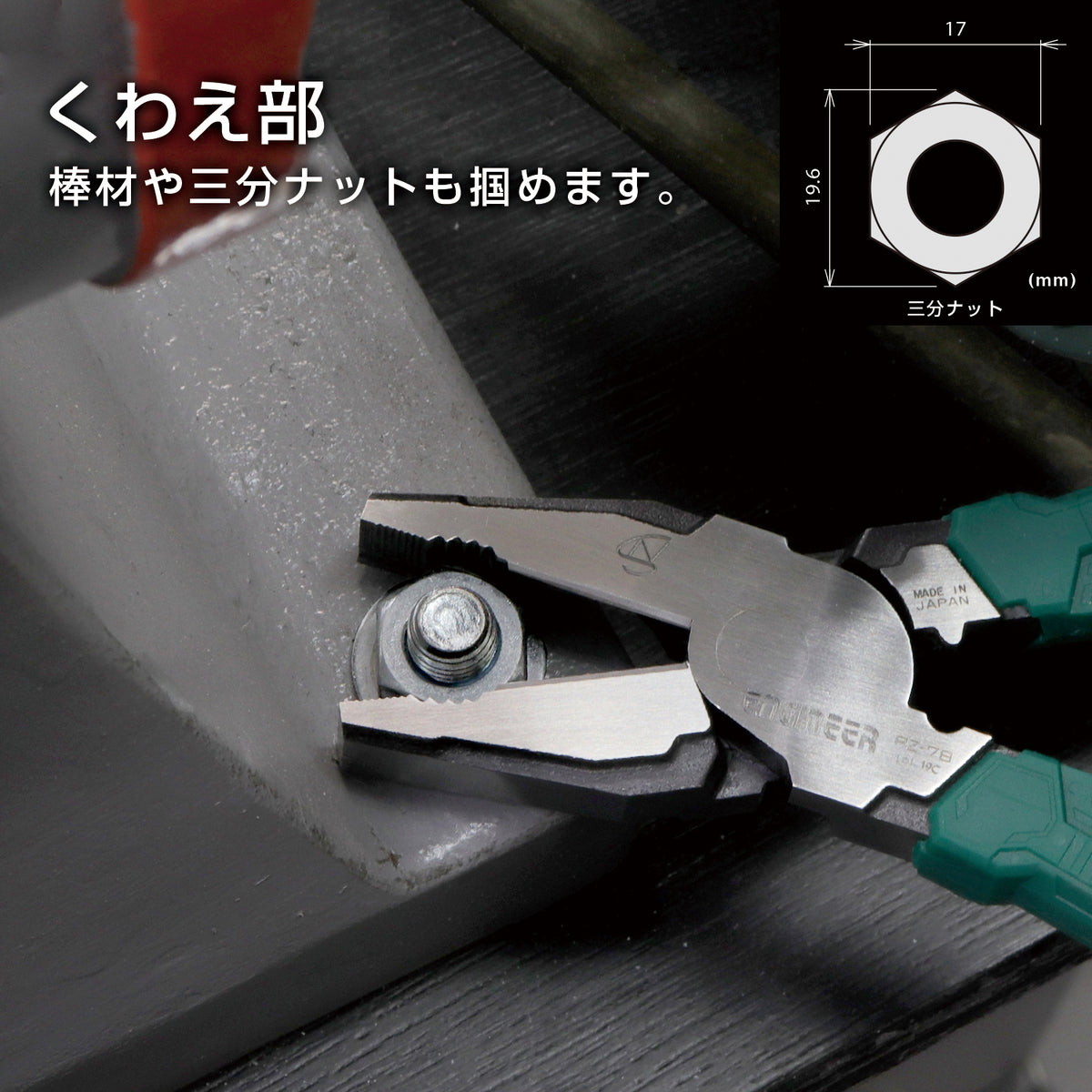

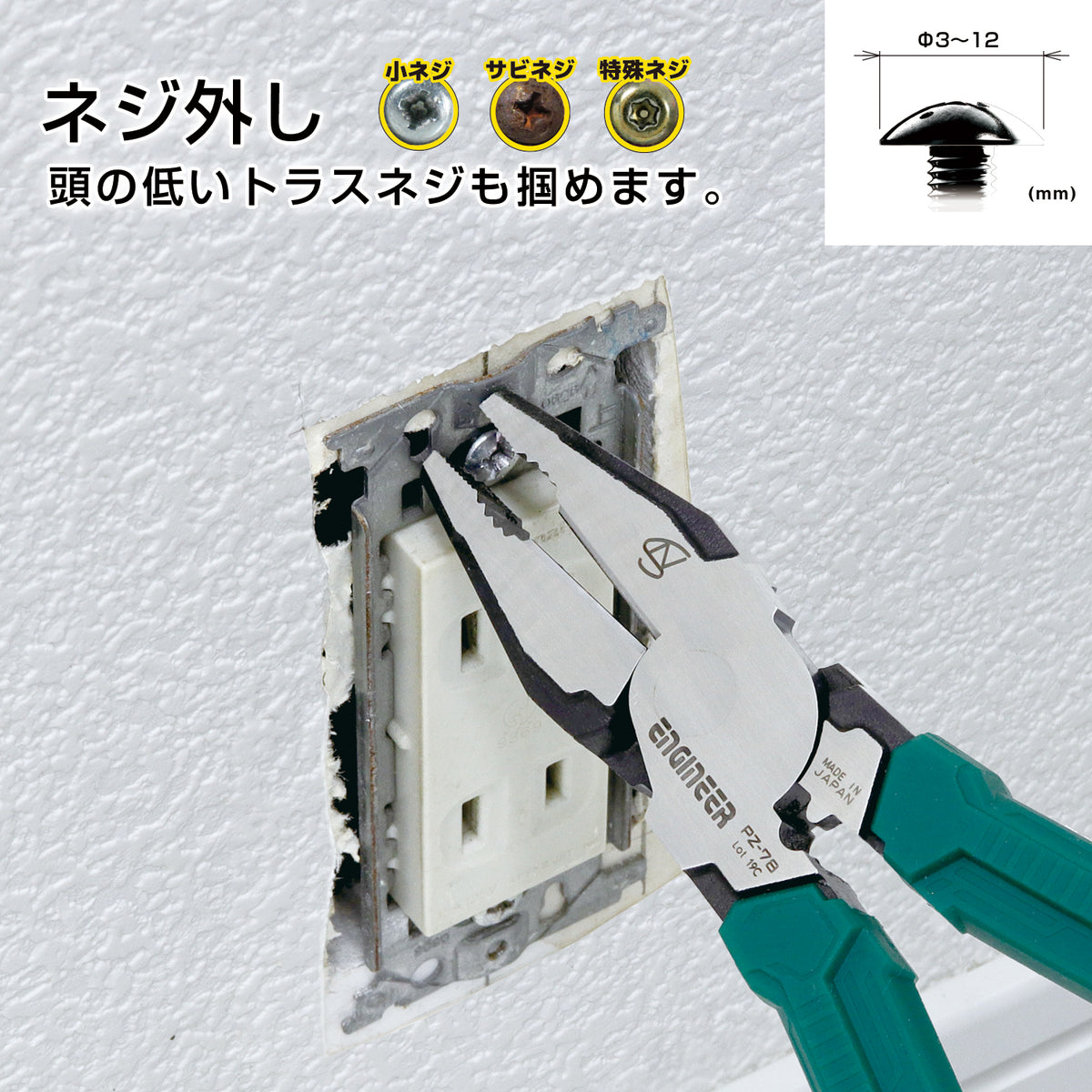

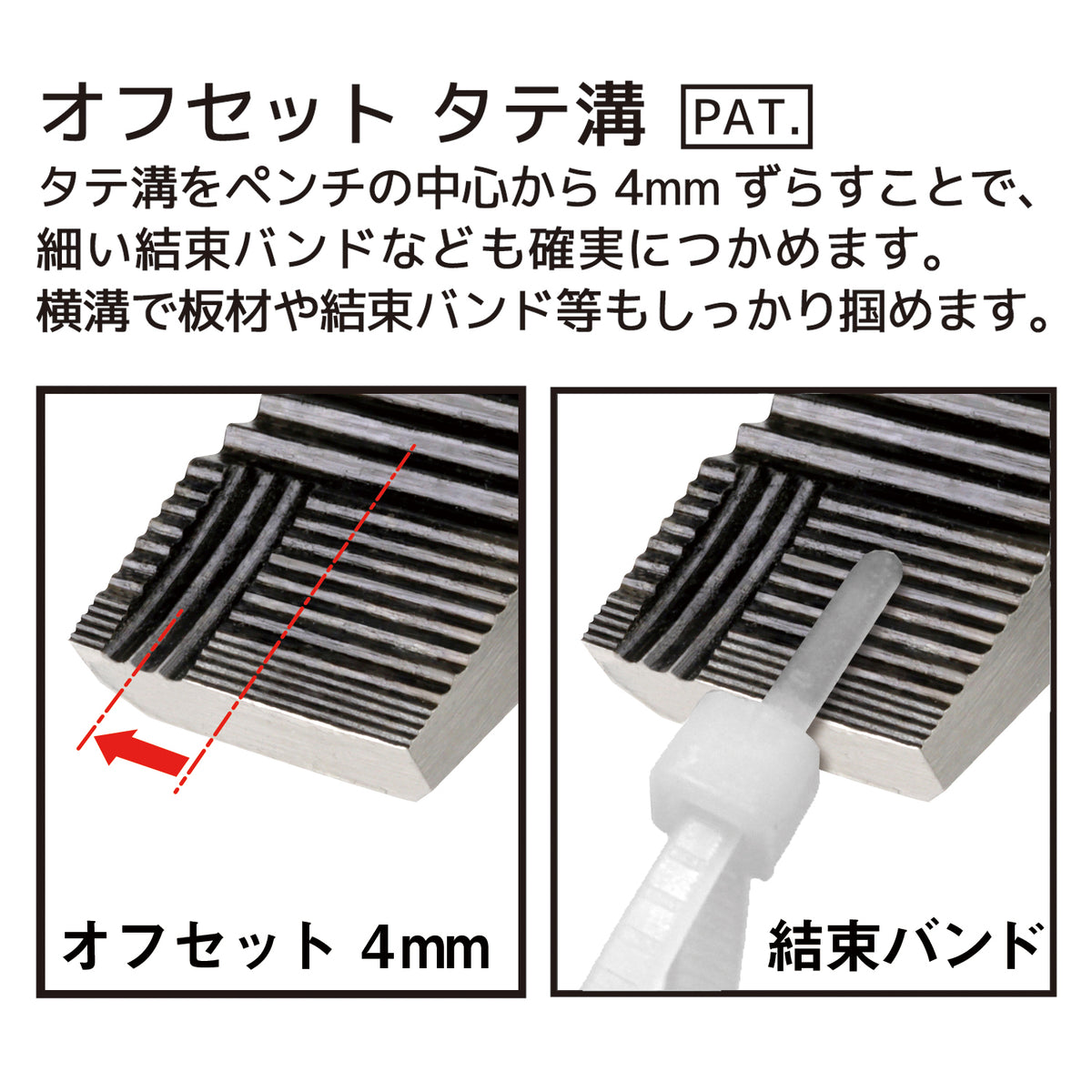

[Features] • Multi-function pliers for electrical work with a built-in screw removal feature. • A powerful offset structure increases cutting force by 30% compared with conventional pliers. Cuts VVF φ2.6 x 3-core cable. • The vertical grooves on the tip grip and turn stripped screws and rusted screws. • The unique tip shape also handles low-head screws (truss head screws). • The tip can grip vertically, allowing work even in tight spaces. • Offsetting the vertical grooves to one side of the tip allows thin cable ties to be gripped securely. • Includes a simple crimping function for CE sleeves and ground terminals (applicable range: 1.25 to 3.5 mm²). • Features a lightweight T-shaped grip that resists twisting. • Note: This tool is not insulated. Never use it to cut live wires or on powered equipment. • Note: Do not use on high-hardness screws such as tapping screws, drilling screws, and coarse thread screws. • Note: May not work on screws completely seized by rust or adhesive. [Applications] • For work in electrical construction, electrical materials, civil engineering, building construction, and related fields. • For removing stripped screws and rusted screws.

SPECIFICATION

  • Product Number: PZ-78
  • Compatible Screw Head Diameter: φ3 to 12 mm (0.12 to 0.47 in)
  • Vertical Groove Hardness: HRC60±2

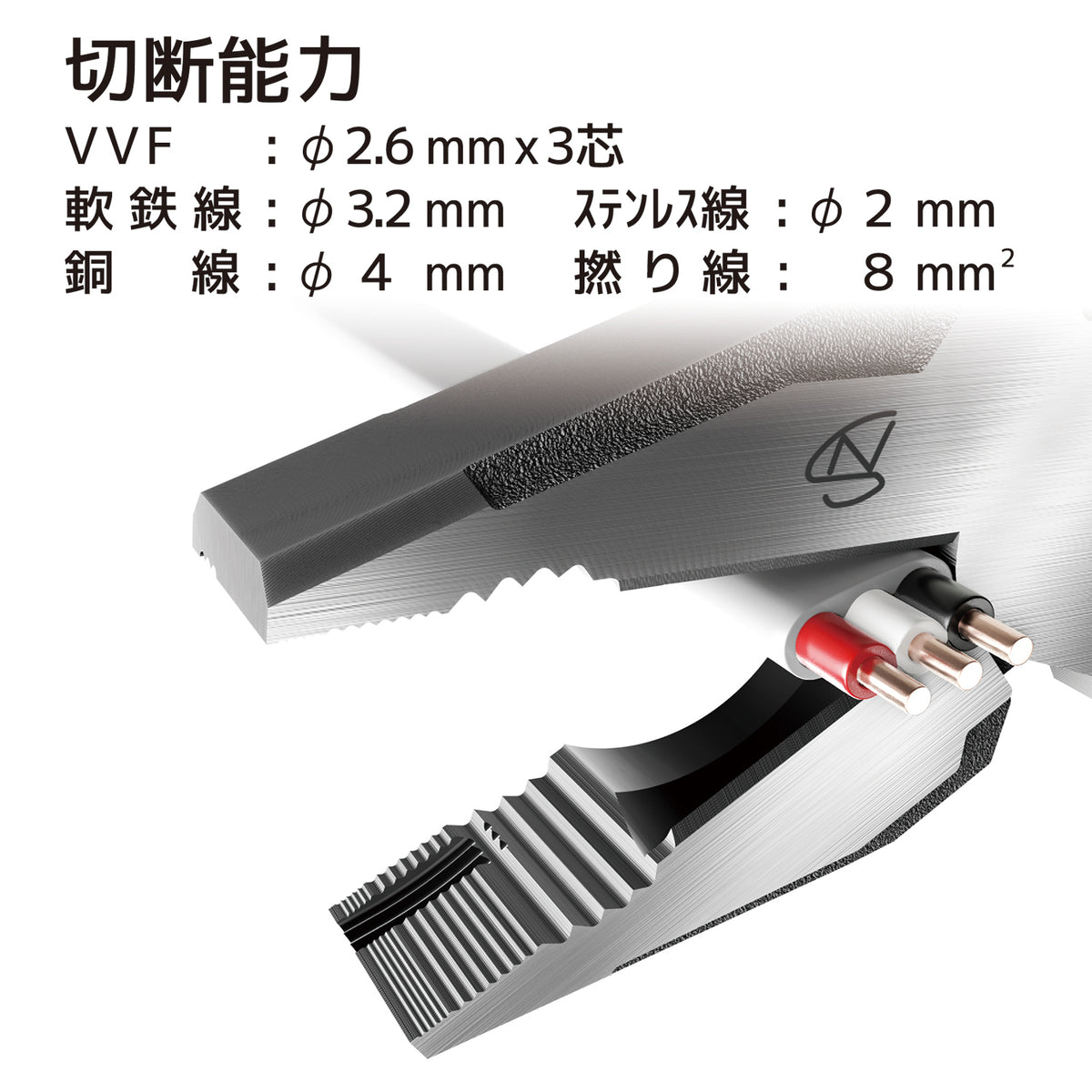

  • Cutting Capacity: VVF: 2.6 mm (0.1 in) x 3 cores, Stainless steel wire: φ2 mm (0.08 in), Soft iron wire: φ3.2 mm (0.13 in), Copper wire: φ4 mm (0.16 in), Stranded wire: 8 mm²
  • Crimping Range: 1.25 to 3.5mm2

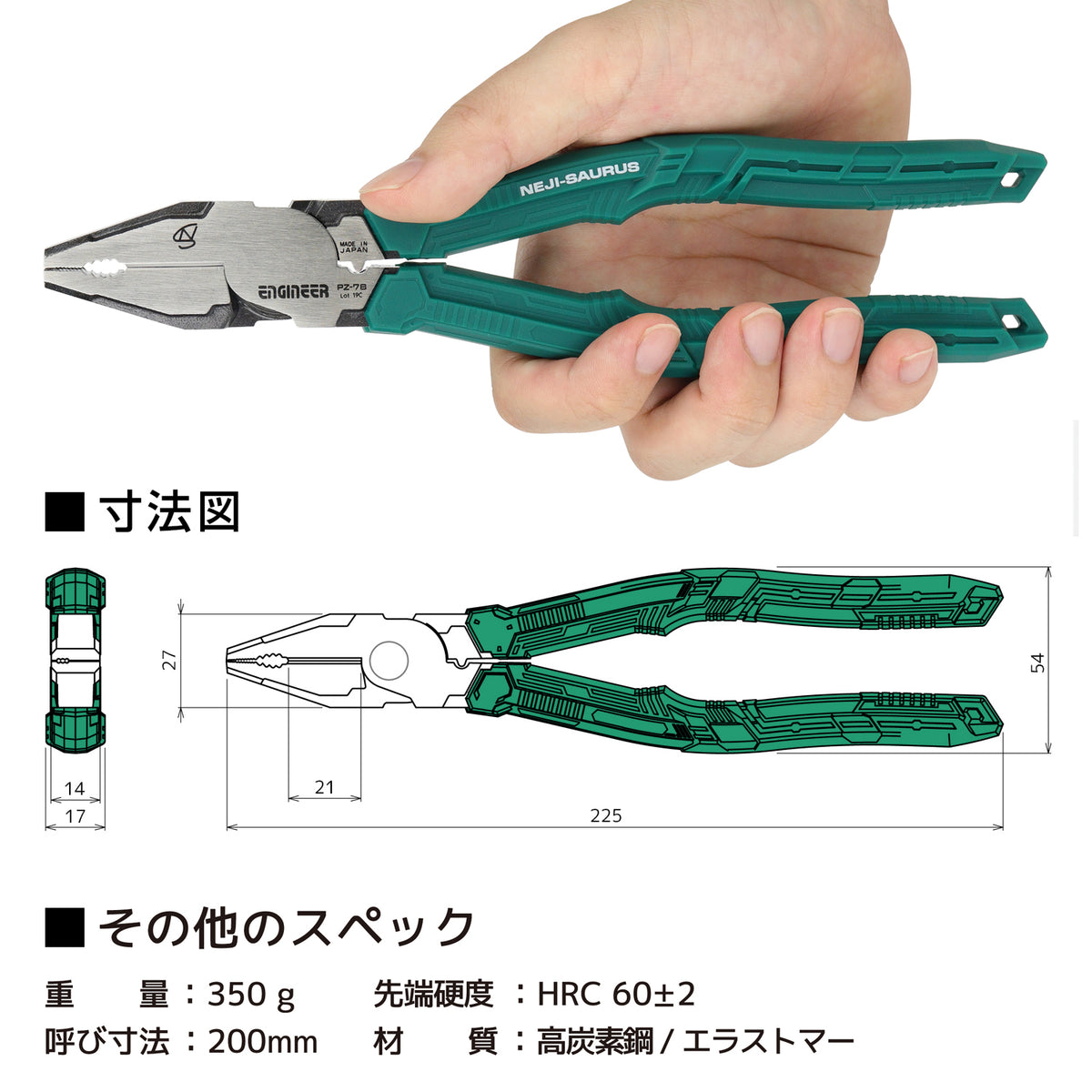

  • Overall Length: 225 mm (8.86 in)
  • Tip Width: 27 mm (1.06 in)
  • Tip Length: 39 mm (1.54 in)
  • Blade Length: 21 mm (0.83 in)
  • Grip Width: 54 mm (2.13 in)
  • Weight: 350 g (12.3 oz)
  • Material: Body: carbon steel, Grip: elastomer
  • Made in Japan
  • JAN Code: 4989833039783
